contactless
Contact Tracing
When the Singapore Government need to implement a contact tracing device during Covid-19 pandemic, GA123416BL02 was selected. The device play a critical role in helping to contain Covid-19 virus and save lifes.
monitor_heart
Health Monitoring
Reliable and versatile, GA123416BL02 had been used in wide range of applications, such as in remote control, headsets and even tennis rackets, where it is part of circuitry to detect and record players' swing speed.
bluetooth
Wide applications
Reliable and versatile, GA123416BL02 had been used in wide range of applications, such as in remote control, headsets and even tennis rackets, where it is part of circuitry to detect and record players' swing speed.

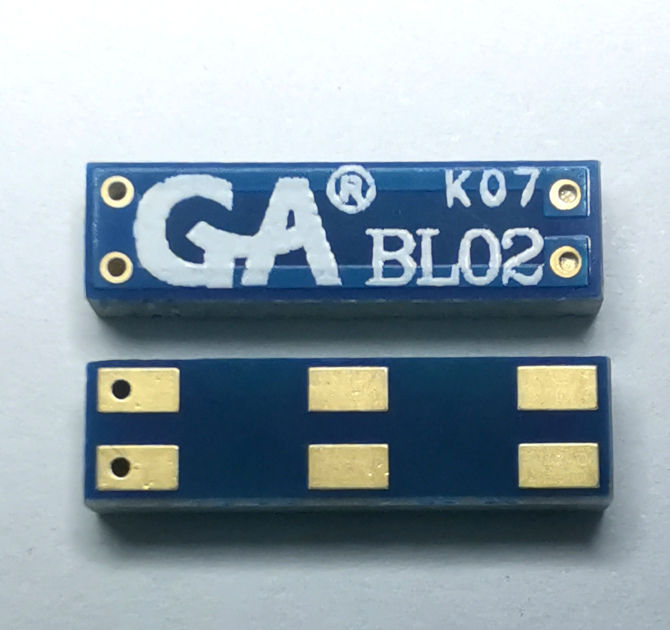

GA123416BL02 is an exceptional miniature antenna, offering a range of outstanding benefits for a variety of applications. This state-of-the-art product has been specially designed for Bluetooth communication, making it an essential component in a variety of devices, from personal medical equipment to remote controls.

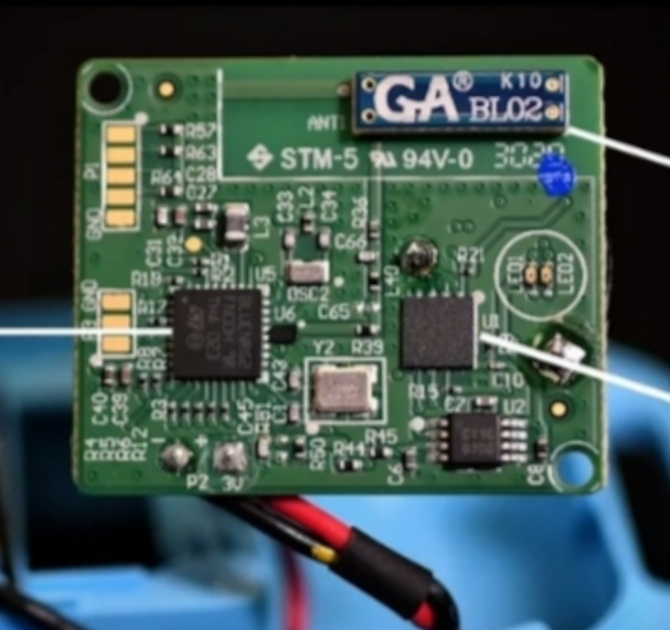

One of the key advantages of GA123416BL02 is its versatility, which has been demonstrated by its usage in highly demanding products. During the Covid-19 pandemic, it was selected to be used in the Singapore government's TraceTogether contact tracing devices, demonstrating the product's efficiency and reliability.
In addition to its use in contact tracing devices, GA123416BL02 has also been incorporated into a range of other applications, including personal medical devices, remote controls, and even tennis rackets. The antenna's innovative design and advanced capabilities have made it a go-to solution for a wide range of industries, from medical to sports.
The success of GA123416BL02 is evident in the fact that over 1 million units have been shipped to date, a testament to its effectiveness and high quality.
Features:
- Designed for 2.4GHz applications: Bluetooth, WIFI (802.11b/g), ZigBee, Wimax(2.3GHz and 2.5GHz) and more
- High efficiency (76%)
- Linear Polarization
- Omni-Directional (PCB dimension dependent)
- Minimum PCB clearance

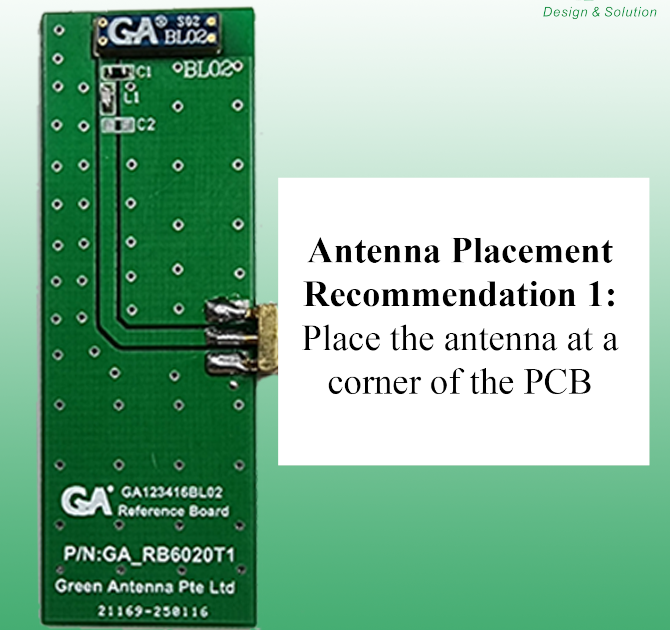

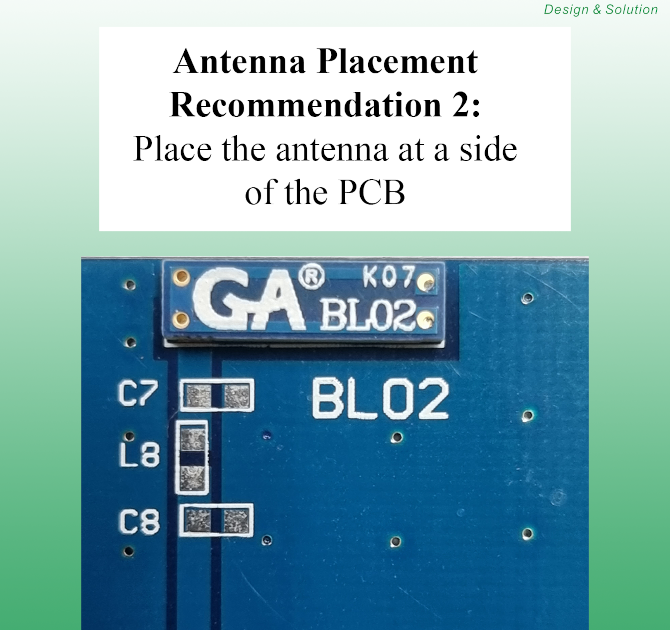

- Flexible placement on PCB edge
- SMD mounting
- Low profile, miniature and light weight
- Tape and reel packaging
- RoHS Compliance
Applications:
- phone_iphone Smart Phone
- tablet_android Tablets
- laptop Laptops
- headset Headsets
- developer_board Wireless Modules
- sensors Sensors
- directions_car Automotives
Specification
| Frequency | 2.4 - 2.5GHz |
|---|---|
| S11 | < -11dB |
| VSWR | < 1.8:1 |
| Peak Gain | 2.28 dBi |
| Polarization | Linear |
| Impedance | 50 Ohms |
| Efficiency | 76% |
| Radiation Pattern | Omni |

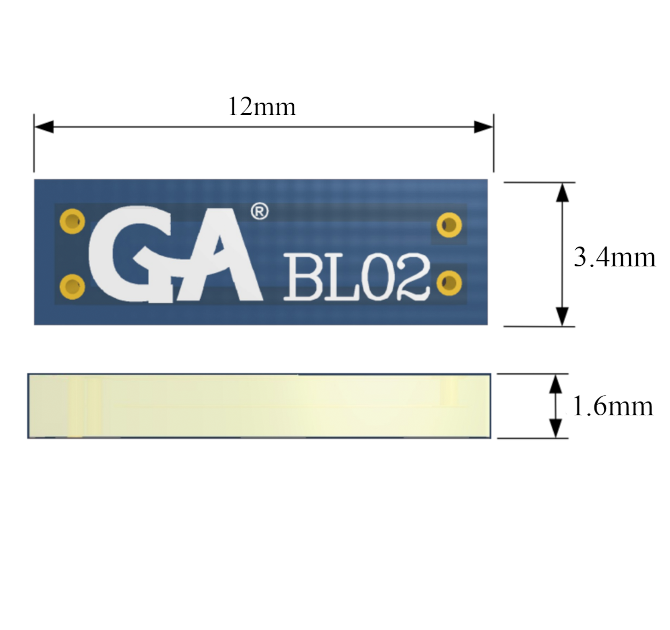

| Dimension | 12mm x 3.4mm x 1.6mm |
| Weight | 0.12g |
| Temperature Range | -25oC to +80oC |
| Humidity | 65oC 95% RH |

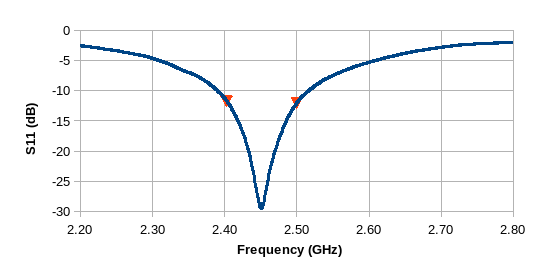

S11

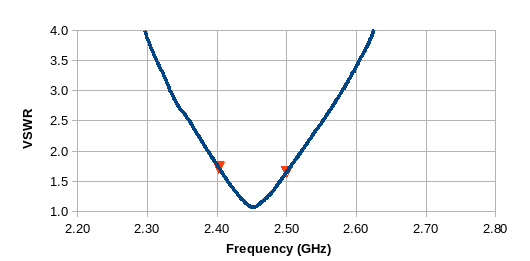

VSWR

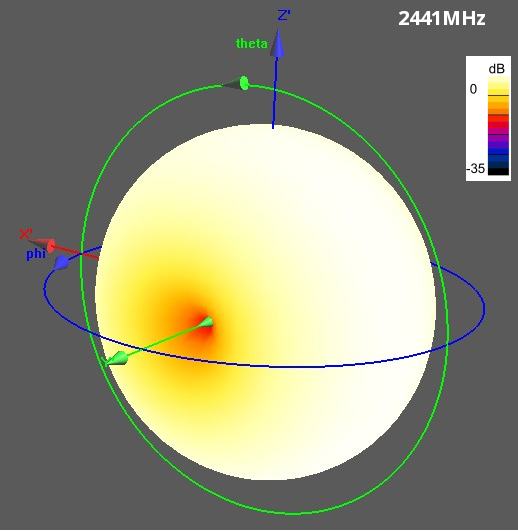

3D Radiation Pattern

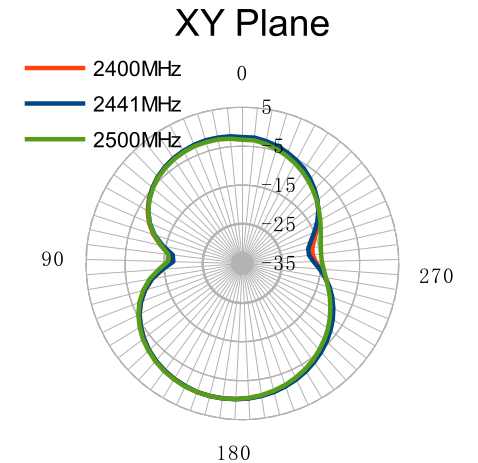

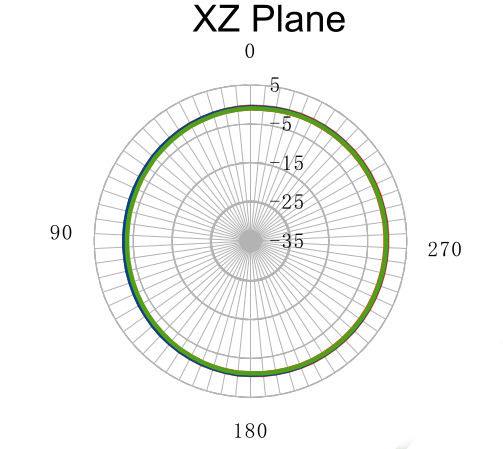

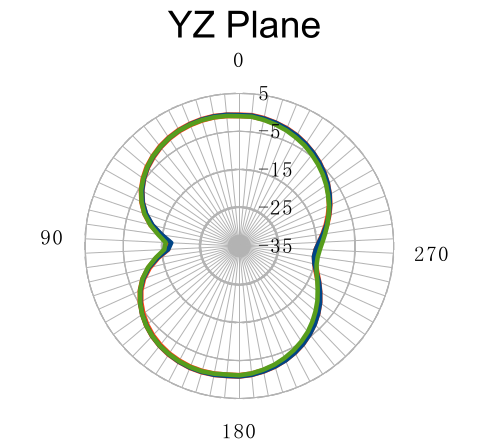

2D Radiation Patterns
Above figures and graphs are measured with reference board with size of 60x20mm.
